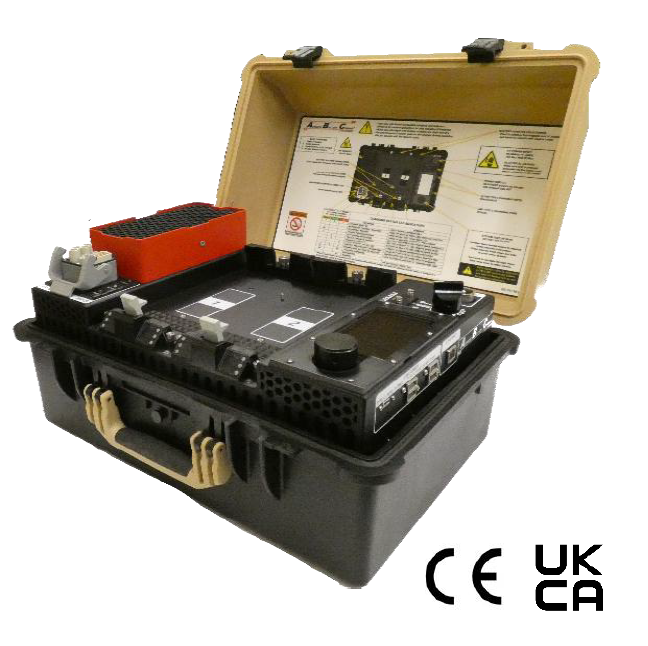

ABC Plus Charger, 2000W
Advanced Battery Charger Plus

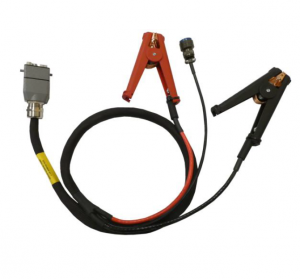

High power version of the widely fielded Advanced Battery Charger (ABC). Adds the ability to charge large-format batteries like the Li-ion 6T battery in addition to the existing handheld/man-portable battery portfolio. The additiona of the high power port also provides the ability to discharge connected batteries to selectable states of charge. Up to 2000W of charging capability and up to 1000W of discharge capability. CE marked.
● Flexible Input Power: AC (90-264Vac, 47-440Hz) for worldwide use
● Input-current limiting prevents utility-mains overload
● 2 ABC/SPC Adapter Ports Provide 4 Independent Charging Channels
● Utilize Legacy SPC (Soldier Portable Charger) Adapters or New ABC Adapters
● 1 High Power Port - Up to 2000W Charge Power and 1000W Discharge Power
● Familiar Charging Status: Red/Yellow/Green LED Indicators
● Full-Color 4.3” LCD Display
● Operational Menu Navigation Through Rotary Selector Switch
● 4 USB Type-A Charging Ports: 5V, 2A Capable
● 1 USB Type-C Charging Port: 5V, 3A Capable
● Stand Alone Firmware Upgrade Using USB Type-C Flash Drive
● Removable Cover and Case to Minimize Required Footprint
● Durable, Compact and Lightweight Design
● CE and UKCA Compliant
● Backward compatible with the majority of legacy Soldier Portable Charger (SPC) adapters
Click here for all ABC Adapters, Cables, and other Accessories
Dimensions
Other
| SKU | BTC-70100HP-2SCT |
|---|---|
| Case Materials/Colors | Polypropylene ABS Plastic / Black Base, Tan Cover; Aluminum Chassis |
| Power Requirements | AC:90-264Vac, 47-440Hz. DC: 11-22Vdc, 46A Maximum. Solar: 11-36Vdc, 1000W Maximum |
| Storage Temperature | -40°C to 71°C (-40°F to 160°F) |
| Operating Temperature | -31°C to 55°C (-25°F to 131°F) |
Some documents are available to logged in users only. Please log in or create an account to view.
| Adapters | Batteries Supported | NSN |
| BTA-70100-1 | BB-2590/U (Standard Charge) | 6130-01-667-1471 |
| BTA-70100-1A | BB-2590/U (Full Charge) | 6130-01-685-5237 |
| BTA-70100-2 | PRC-148/152, AA, D | 6130-01-667-1500 |
| BTA-70100-3 | PRC-153, C | 6130-01-667-1854 |
| BTA-70100-5 | BB-2600/2800/326 | 6130-01-667-1598 |
| BTA-70100-6 | AA, AAA, CR123 | 6130-01-667-1604 |
| BTA-70100-7 | PRC-154, BB-2525 | 6130-01-667-1619 |
| BTA-70100-8 | Quad CSEL | 6130-01-706-9411 |
| BTA-70100-148 | Quad PRC-148 | 6130-01-706-9251 |
| BTA-70100-152/163 | Quad PRC-152/163 | 6130-01-706-9491 |
| BTA-70100-838 | Quad SMP | 6130-01-685-8278 |
| BTA-70100-909 | Quad NETT+ | 6130-01-706-9266 |
| BTA-70100-910 | Quad CWB | 4935-01-707-0488 |
| BTA-70100-DCB | Quad DeWalt(R) 20V/60V | 6130-01-706-9395 |
| BTA-70100-SKL | Quad SKL | 6130-01-711-0141 |
| Cables | Description | NSN |
| BTA-70100-AC-1 | AC Input Cable, US, 10ft | 6150-01-665-1210 |
| BTA-70100-AC-1A | AC Input Cable, US, 6ft | |
| BTA-70100-AC-2 | AC Input Cable, EU, 6ft | 6145-01-686-2818 |
| BTA-70100-AC-3 | AC Input Cable, UK, 6ft | |
| BTA-70100-AC-4 | AC Input Cable, AU, 6ft | 6145-01-685-7235 |
| BTA-70100-DC12-1 | DC Input Cable, 12V, Ring Lugs | |
| BTA-70100-DC24-1 | DC Input Cable, 24V, NATO | |
| BTA-70100-DC24-3 | DC Input Cable, 24V, Ring Lugs | 5995-01-684-3807 |
| BTA-70100-DCS-2 | DC Input Cable, Solar, 4 Panel | |
