SKU
BT-70720A (BA-5301A/U)
CSEL Primary
Military #
BA-5301A/U
NSN
6135-01-568-3234
Chemistry:
Li-SOCl2

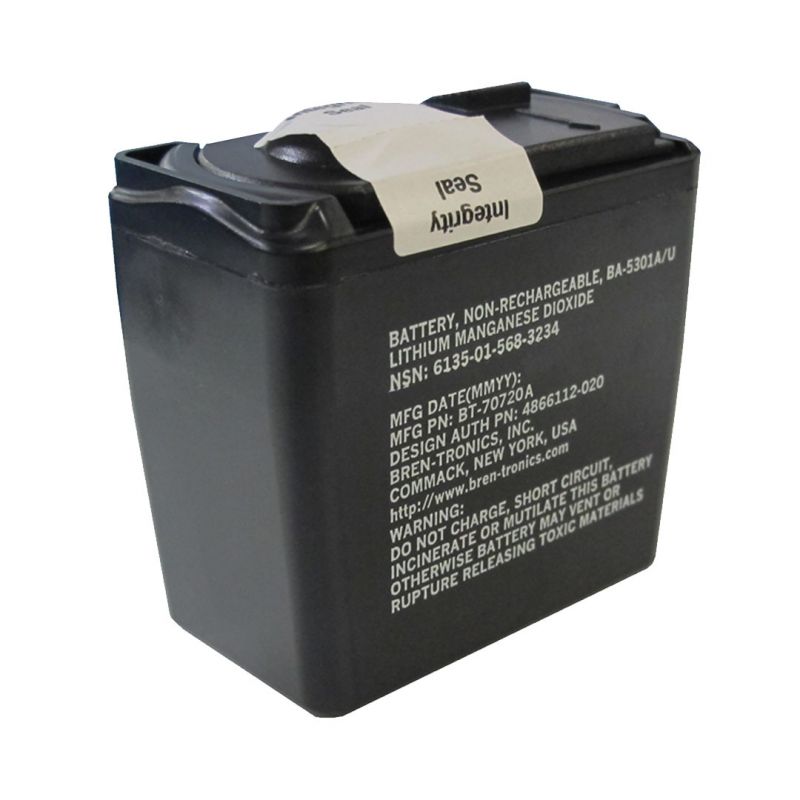

CSEL, Non-Rechargeable Lithium Manganese Dioxide Battery
Handheld non-rechargeable Lithium Manganese Dioxide radio battery typically used in AN/PRQ-7 CSEL (Boeing Combat Survivor Evader Locator Radio).• Communicates using a Single Wire DQ Interface
• Comparable to: BT-70581, BT-70581A, BT-70581B, BT-70581Cx, BT-70676Bx, BB-2001A/U, BA-5301A/U,
BT-70720, MAI-901017, MAI-901018, MAI-901020, and 4866112-004
• Immersion: Tested to 10 meters for 5 minutes, 1 meter for 12 hours
Typically used in:
• AN/PRQ-7 CSEL (Boeing Combat Survivor Evader Locator Radio)
Dimensions
Length: 3.05 +/- 0.01
Width: 1.72 +/- 0.01
Height: 2.95 +/- 0.01
Other
SKU | BT-70720A |
---|---|
Nominal Voltage | 15.9V |
Ah | 2.8 |
Maximum Voltage | 16.4V |
Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
Connector | Flat Contacts (side), Fly Wheel Connection (top) |
State of Charge Indicator | Yes |
Battery Type | Primary |
Smart Battery | DQ |
Brenergy | No |
Some documents are available to logged in users only. Please log in or create an account to view.
Product Downloads
Related Products
- xx90 USB Adapter, 3.1 A BTP-70791-USB2
- Med Rate Charger Kit BTK-70822-MR-x

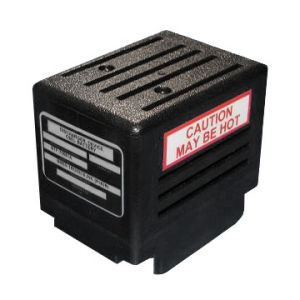

- Discharger, CSEL, BT-70581, BB-2001 BTF-70581A
